Plastic Capping

You are here:

Home
Browse Products
Plastic Capping

Description guide: 1st internal width - 2nd external long leg - 3rd external short leg - 4th thickness | M = metres, mm = millimetres

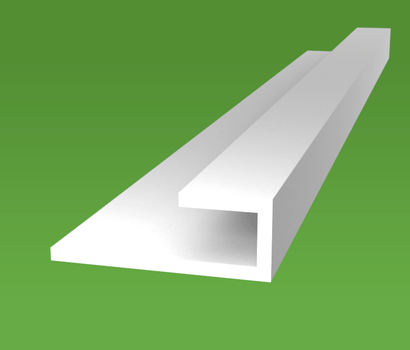

Plastic capping Sections can be used for edge covers and capping for boards, and many other applications. Our plastic capping is made from high quality PVC and available in a variety of sizing options.

See also our range of Plastic J Channels

Description	Product Code	Material	Colour	75 metres per pack	Price per pack	Packs required
CAP 2mm x 20mm x 5mm x 1.5mm	C220515W	External Grade Rigid PVC	White	25 X 3M	£38.83	£38.83 - +
CAP 2mm x 20mm x 5mm x 1.5mm	C220515B	External Grade Rigid PVC	Black	25 X 3M	£38.83	£38.83 - +
CAP 3mm x 20mm x 7.5mm x 1.5mm	C3207515W	External Grade Rigid PVC	White	25 X 3M	£41.90	£41.90 - +
CAP 3mm x 20mm x 7.5mm x 1.5mm	C3207515B	External Grade Rigid PVC	Black	25 X 3M	£41.90	£41.90 - +
CAP 4mm x 25mm x 10mm x 1.5mm	C4251015W	External Grade Rigid PVC	White	25 X 3M	£58.25	£58.25 - +
CAP 4mm x 25mm x 10mm x 1.5mm	C4251015B	External Grade Rigid PVC	Black	25 X 3M	£58.25	£58.25 - +
CAP 6mm x 25mm x 10mm x 1.5mm	C6251015W	External Grade Rigid PVC	White	25 X 3M	£60.30	£60.30 - +
CAP 6mm x 25mm x 10mm x 1.5mm	C6251015B	External Grade Rigid PVC	Black	25 X 3M	£60.30	£60.30 - +
CAP 6mm x 42mm x 15mm x 1.5mm	C6421515W	External Grade Rigid PVC	White	25 X 3M	£97.89	£97.89 - +
CAP 6mm x 42mm x 15mm x 1.5mm	C6421515B	External Grade Rigid PVC	Black	25 X 3M	£97.89	£97.89 - +
CAP 9mm x 25mm x 10mm x 1.5mm	C9251015W	External Grade Rigid PVC	White	25 X 3M	£66.43	£66.43 - +
CAP 9mm x 25mm x 10mm x 1.5mm	C9251015B	External Grade Rigid PVC	Black	25 X 3M	£66.43	£66.43 - +
CAP 12mm x 25mm x 10mm x 1.5mm	C12251015W	External Grade Rigid PVC	White	25 X 3M	£72.57	£72.57 - +
CAP 12mm x 25mm x 10mm x 1.5mm	C12251015B	External Grade Rigid PVC	Black	25 X 3M	£72.57	£72.57 - +
CAP 15mm x 25mm x 10mm x 1.5mm	C15251015W	External Grade Rigid PVC	White	25 X 3M	£73.36	£73.36 - +
CAP 15mm x 25mm x 10mm x 1.5mm	C15251015B	External Grade Rigid PVC	Black	25 X 3M	£73.36	£73.36 - +
CAP 18mm x 25mm x 15mm x 1.5mm	C18251515W	External Grade Rigid PVC	White	25 X 3M	£88.69	£88.69 - +
CAP 18mm x 25mm x 15mm x 1.5mm	C18251515B	External Grade Rigid PVC	Black	25 X 3M	£88.69	£88.69 - +

PVC capping compared to U channels

Whilst plastic U channels have two straight legs of equal length, our PVC capping range has two legs of unequal length. The short edge of the PVC capping channel tapers inwards very slightly which may help with grip. We do advise to request a sample to test for your particular project.

PVC capping profile in black and white

We have a choice of black plastic capping and white plastic capping in our stock range. It is possible to make other colours of plastic capping channel but as this is a custom requirement the minimum meterage would be 2000 metres.

Similar product - plastic J channel

We have a similar product called plastic J channel so if you don’t see the size of PVC capping you are needing in this category it would be worth checking out available sizes on the plastic J channel page.

High quality PVC capping made in the UK

We manufacture black plastic capping and white plastic capping in the UK. Our profiles are high quality and are made from an external grade rigid PVC. This means PVC capping channel can be used outside as well as inside. We are accredited with the British Quality Standard ISO 9001:2015 and the British Environmental Standard ISO 14001:2015.
